Design problem
Gradient dye and graphic placement can drift between sample and bulk. The buyer needed the light-to-blue transition, front logo, sleeve motif, lower distress marks, and rib recovery to stay consistent.
Project Reference · United States
Gradient Crewneck Artwork Placement Case
A gradient crewneck sample case documenting dip-dye transition, front artwork placement, sleeve motif location, rib shape, lower distress marks, and export QC release from verified front, back, and model photos.
Development brief
The design problem and the development approach
Development approach
We used the verified front/back sample photos to create a hand sketch, then added a production board for dye, artwork, and QC release. Confidential client and supplier information has been removed.
| Item | Direction or review focus |
|---|---|
| Product | Gradient graphic crewneck sweatshirt |
| Fabric | Crewneck fleece with gradient dye route |
| Decoration | Front graphic print and sleeve motif |
| QC Focus | Dye transition, artwork placement, rib recovery |
Materials shown: 3 sample views, a design sketch and a development board.
Design sketch review
Technical sketch notes

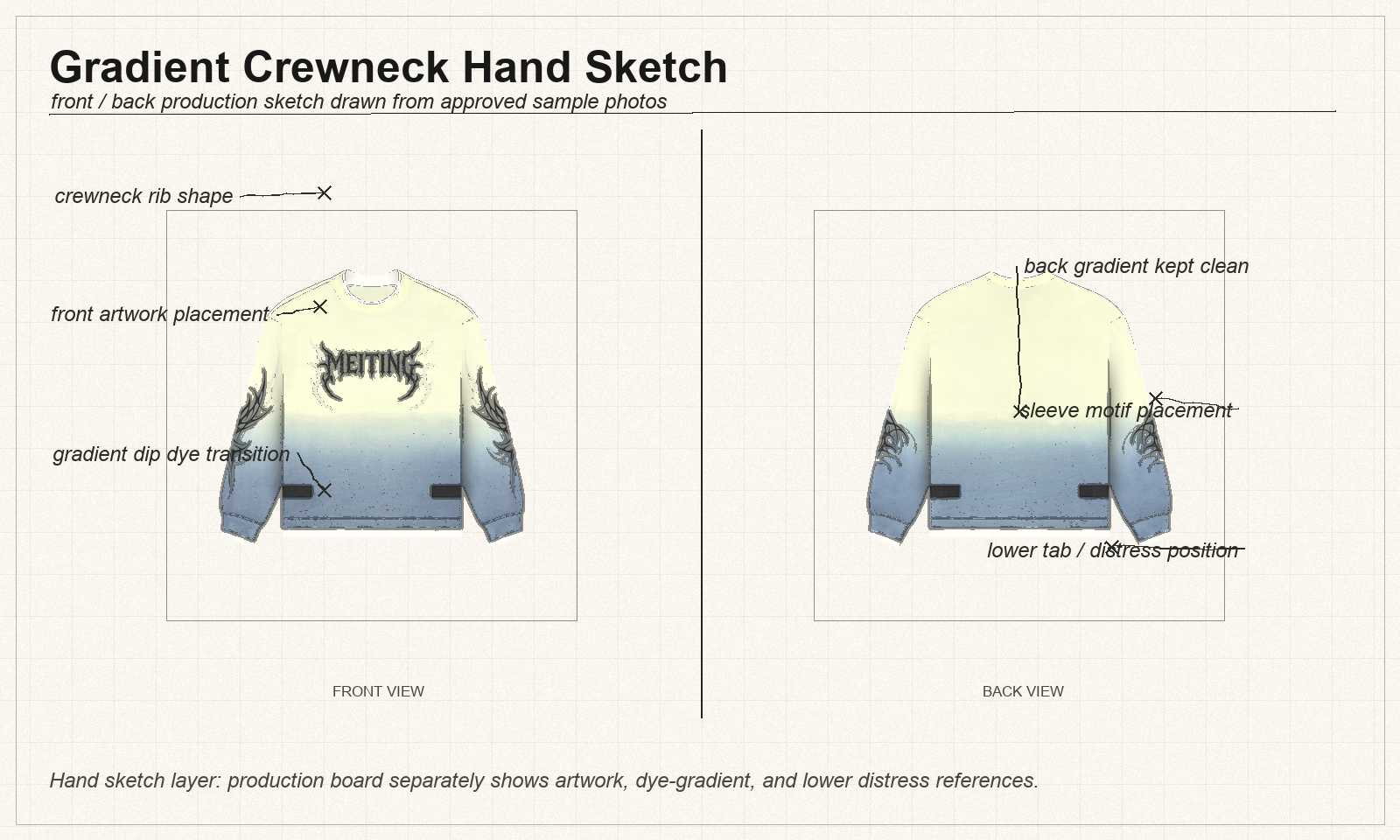

Front and back hand sketch showing gradient dip dye, front artwork, sleeve motif, neck rib, and lower detail placement.
Hand sketch presents the verified front/back garment; production board expands the artwork, dye-gradient, and QC review.
- Keep the gradient dip dye transition from light top to blue hem visible.
- Confirm front MEITING artwork placement from the approved sample.
- Review sleeve motif placement only where it appears on the verified photos.
- Check back body gradient and lower distress/tab details against the back sample.
- Use private fabric or color references only as anonymized production notes on the public page.
Reference-style production board
Factory-ready design and production notes.

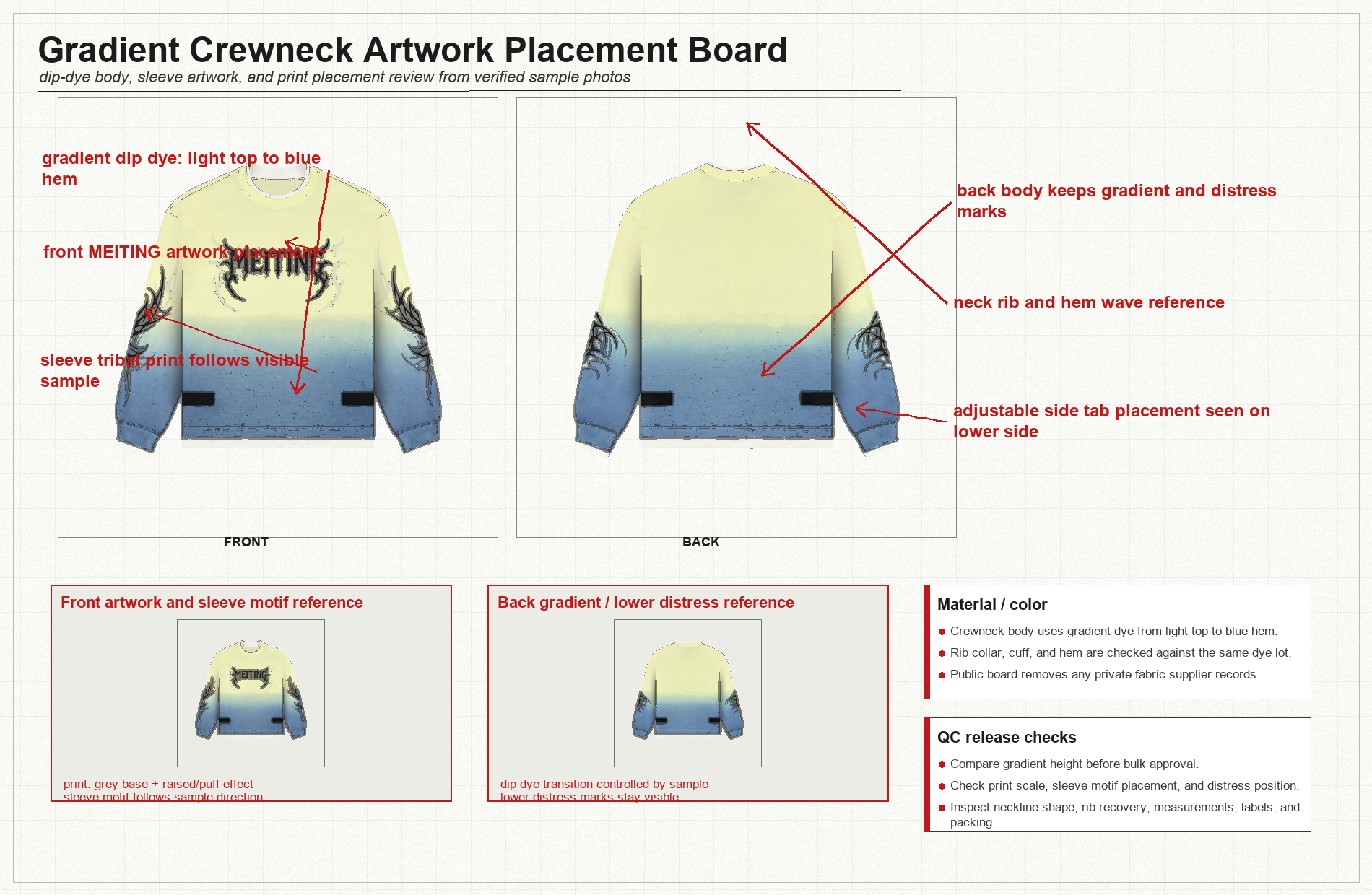

Reference-style production board for dye gradient, artwork scale, sleeve motif direction, lower distress marks, and QC release checks.
Production review board
Material, artwork, construction, and release checks.
Material / trim
- Crewneck body uses gradient dip dye from light top to blue hem.
- Rib collar, cuff, and hem must recover after wash and pressing.
- Private fabric cards and supplier records are kept confidential.
Artwork / construction
- Front artwork placement is locked from the verified sample.
- Sleeve motif direction follows the visible sample, not a guessed full artwork file.
- Lower distress marks and tab placement are checked before bulk release.
QC release checks
- Compare gradient height and color transition across bulk pieces.
- Check print scale, sleeve motif placement, neck rib shape, and lower details.
- Inspect measurements, labels, wash result, folding, and carton packing.
Sample-to-Bulk Process
- 01
Matched verified front, back, and model sample photos to one crewneck case.
- 02
Built a front/back hand sketch for dye, artwork, sleeve motif, and lower detail review.
- 03
Prepared a production board for artwork scale, dye gradient, trim notes, and QC release points.
- 04
Converted the review into release checks for dye height, print placement, measurements, labels, and packing.
Documented Production Decisions
- task_altGradient dip dye, front artwork, and sleeve motif review documented visually
- task_altHand sketch and production board built from verified front/back sample photos
- task_altQC release checks focused on dye height, print placement, rib recovery, measurements, and packing
